Synaptic Systems

Cat. No.: 192 104

Amount: 100 µl

Price: $370.00

Cat. No. 192 104	100 µl antiserum, lyophilized. For reconstitution add 100 µl H₂O, then aliquot and store at -20°C until use. Antibodies should be stored at +4°C when still lyophilized. Do not freeze!
Applications	WB: not tested yet IP: not tested yet ICC: not tested yet IHC: 1 : 1000 up to 1 : 10000 (see remarks) gallery IHC-P (FFPE): 1 : 500 up to 1 : 1000 gallery Western blot (WB); separation of proteins by PAGE and subsequent transfer to a membrane. Detection of target molecules is carried out with antibodies. Some antibodies require special sample preparation steps. For details, please refer to the “Remarks” section. Immunoprecipitation (IP); Immunoisolation or pulldown of a target molecule using an antibody. For details and product specific hints, please refer to the ”Remarks” section. Immunocytochemistry (ICC) on 4% PFA fixed cells. Immunoreactivity is usually revealed by fluorescence. Some antibodies require special fixation methods. For details, please refer to the “Remarks” section. Immunohistochemistry (IHC) on 4% PFA perfusion fixed tissue with 24h PFA post fixation. Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate. Some antibodies require special fixation methods or antigen retrieval steps. For details, please refer to the ”Remarks” section. Immunohistochemistry (IHC-P) of formalin fixed, paraffin embedded (FFPE) tissue (some antibodies require special antigen retrieval steps, please refer to the ”Remarks” section). Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate.
Immunogen	Recombinant protein corresponding to AA 95 to 207 from rat Ribeye (UniProt Id: Q9EQH5-2)
Reactivity	Reacts with: rat (Q9EQH5-2), mouse (P56546-2). Other species not tested yet.
Specificity	This antibody recognizes only ribeye and not CtBP 2.
Remarks	IHC: For optimal results in retina tissue, follow the retina protocol. For optimal results in cochlea tissue, follow the cochlea protocol according to Klotz et al. 2019.
Data sheet	Datasheet 192_104

References for Ribeye - 192 104

Establishing synthetic ribbon-type active zones in a heterologous expression system.
Kapoor R, Do TT, Schwenzer N, Petrovic A, Dresbach T, Lehnart SE, Fernández-Busnadiego R, Moser T
eLife (2026) 13: . 192 104 ICC; tested species: human

The missing link: Piccolino is essential for tethering synaptic vesicles to rod photoreceptor ribbons.
Gierke K, Gadomska M, Breuer J, Bahr JN, Müller TM, Ehnis H, Zobel S, Mejia Villagran N, Kirsch SA, Skrzypek A, Frischknecht R, et al.
The Journal of cell biology (2026) 2259: . 192 104 IHC; tested species: mouse

Histamine H3 Receptor Antagonists Influence the Directional Growth of Type II Spiral Ganglion Neurites Within the Developing Cochlea of C57BL/6 Mice.
Kong L, Olze H, Szczepek AJ
Neurochemical research (2025) 504: 266. 192 104 IHC; tested species: mouse

The Size and Localization of Ribeye and GluR2 in the Auditory Inner Hair Cell Synapse of C57BL/6 Mice Are Affected by Short-Pulse Corticosterone in a Sex-Dependent Manner.
Domarecka E, Olze H, Szczepek AJ
Brain sciences (2025) 155: . 192 104 IHC; tested species: mouse

Gating of hair cell Ca2+ channels governs the activity of cochlear neurons.
Karagulyan N, Thirumalai A, Michanski S, Qi Y, Fang Q, Wang H, Ortner NJ, Striessnig J, Strenzke N, Wichmann C, Hua Y, et al.
Science advances (2025) 1125: eadu7898. 192 104 IHC; tested species: mouse

Homologous amacrine to amacrine gap junction coupling serves communication between neighbour OFF alpha retinal ganglion cells.
Szarka G, Futácsi A, Kovács-Öller T, Völgyi B
The Journal of physiology (2025) : . 192 104 IHC; tested species: mouse

Charting the nanotopography of inner hair cell synapses using MINFLUX nanoscopy.
Kapoor R, Kim H, Garlick E, Lima MADRBF, Esch K, Ruhwedel T, Möbius W, Wolf F, Moser T
Science advances (2025) 1145: eady4344. 192 104 IHC; tested species: mouse

The Role of Sphingosine-1-Phosphate Receptor 2 in Mouse Retina Light Responses.
Shrestha AP, Stiles M, Grambergs RC, Boff JM, Madireddy S, Mondal K, Rajmanna R, Porter H, Sherry DM, Proia RL, Vaithianathan T, et al.
Biomolecules (2023) 1312: . 192 104 IHC; tested species: mouse

Hyperacusis in the Adult Fmr1-KO Mouse Model of Fragile X Syndrome: The Therapeutic Relevance of Cochlear Alterations and BKCa Channels.
Ferraguto C, Bouleau Y, Peineau T, Dulon D, Pietropaolo S
International journal of molecular sciences (2023) 2414: . 192 104 IHC; tested species: mouse

Glutamate transporters EAAT2 and EAAT5 differentially shape synaptic transmission from rod bipolar cell terminals.
Tang FS, Yuan HL, Liu JB, Zhang G, Chen SY, Ke JB
eNeuro (2022) : . 192 104 IHC; tested species: mouse

The SNARE protein SNAP-25 is required for normal exocytosis at auditory hair cell ribbon synapses.
Calvet C, Peineau T, Benamer N, Cornille M, Lelli A, Plion B, Lahlou G, Fanchette J, Nouaille S, Boutet de Monvel J, Estivalet A, et al.
iScience (2022) 2512: 105628. 192 104 IHC; tested species: mouse

Activation of Apoptosis in a βB1-CTGF Transgenic Mouse Model.
Weiss M, Reinehr S, Mueller-Buehl AM, Doerner JD, Fuchshofer R, Stute G, Dick HB, Joachim SC
International journal of molecular sciences (2021) 224: . 192 104 IHC; tested species: mouse

Genetic disruption of bassoon in two mutant mouse lines causes divergent retinal phenotypes.
Ryl M, Urbasik A, Gierke K, Babai N, Joachimsthaler A, Feigenspan A, Frischknecht R, Stallwitz N, Fejtová A, Kremers J, von Wittgenstein J, et al.
FASEB journal : official publication of the Federation of American Societies for Experimental Biology (2021) 355: e21520. 192 104 IHC; tested species: mouse

Localization of group II and III metabotropic glutamate receptors at pre- and postsynaptic sites of inner hair cell ribbon synapses.
Klotz L, Wendler O, Frischknecht R, Shigemoto R, Schulze H, Enz R
FASEB journal : official publication of the Federation of American Societies for Experimental Biology (2019) : fj201901543R. 192 104 IHC; tested species: mouse

Cat. No.: 192 104

Amount: 100 µl

Price: $370.00

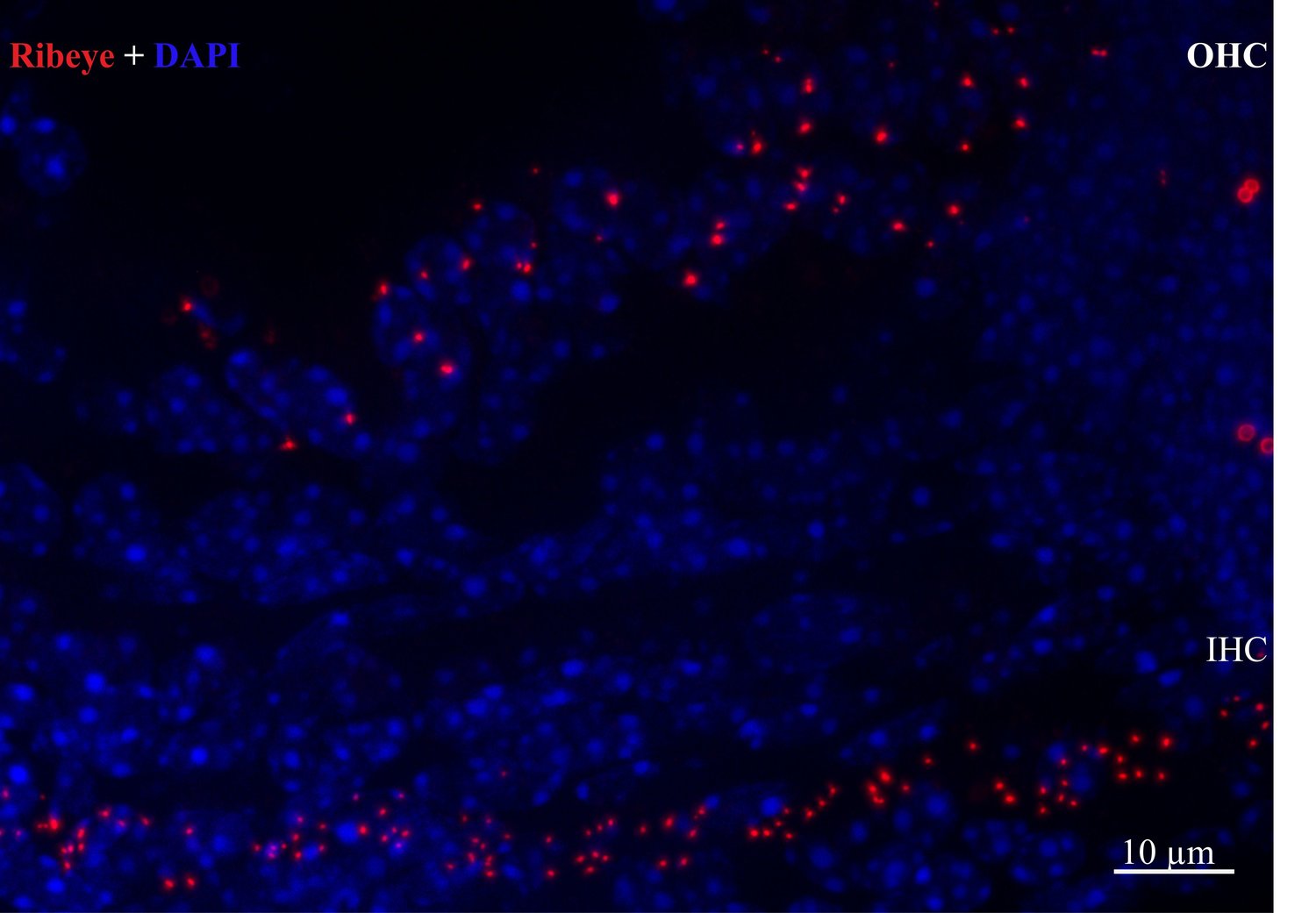

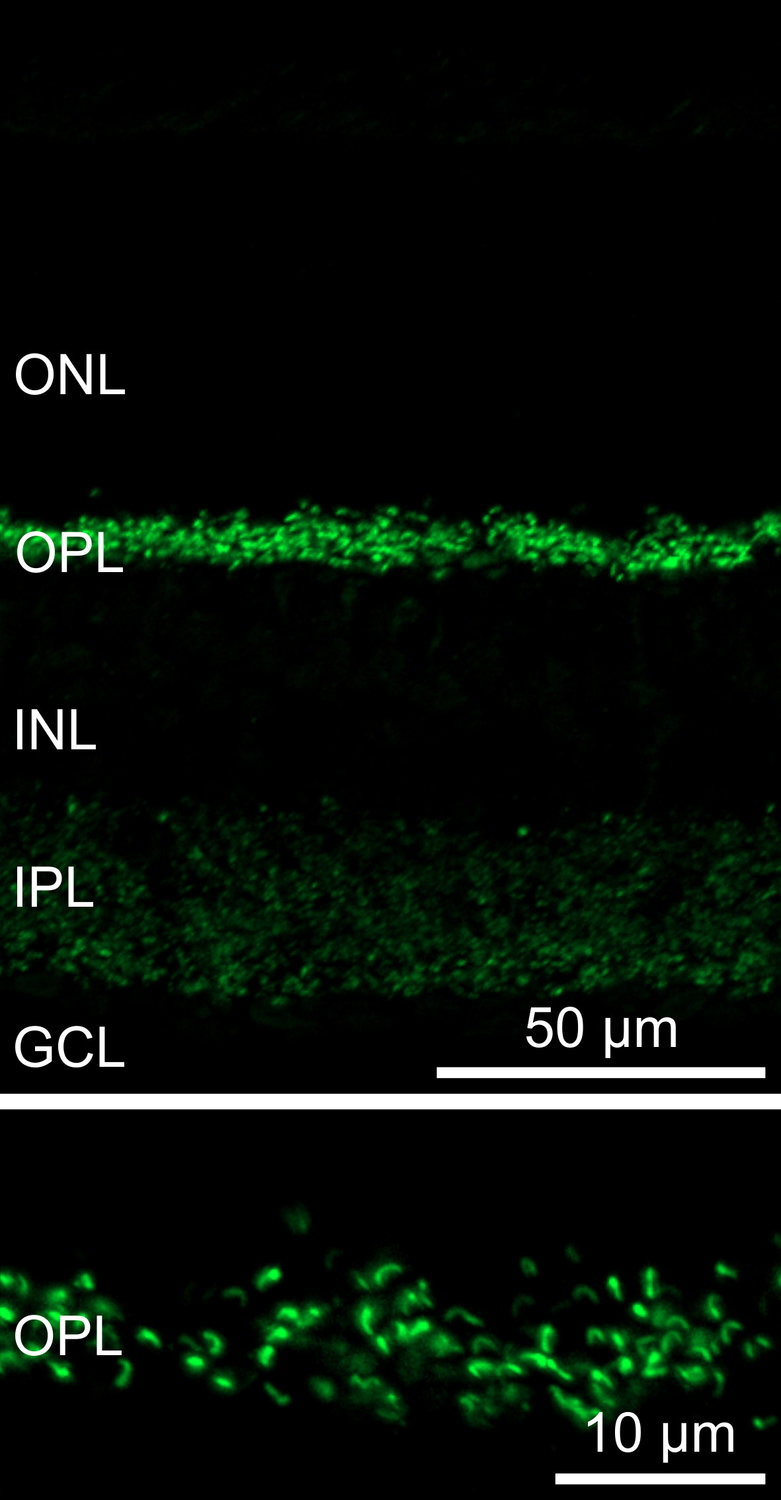

IHC
(2 img)

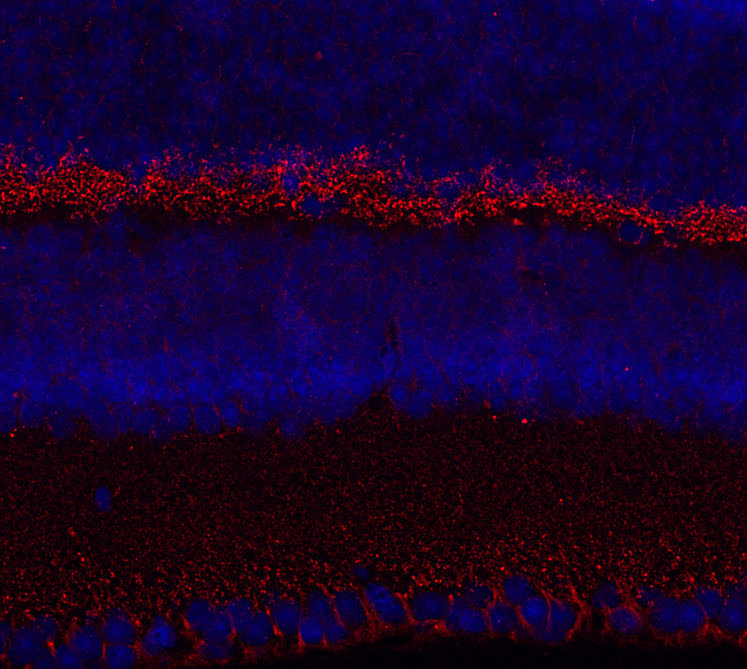

IHC-P (FFPE)
(1 img)

Background

The photoreceptor ribbon synapse is a unique type of synapse specialized for the tonic release of neurotransmitter in the dark. Ribeye is a self-aggregating protein and is one of the major scaffolding components of the ribbon on which the neurotransmitter containing vesicles are tethered. The protein consists of a unique A-domain and a B-domain. With the exception of the first 20 amino acids the B-domain is identical to the transcriptional corepressor CtBP 2. Both proteins originate from the same gene.

1 ) Verger A et al., Mol. Cell. Biol. (2006)
2 ) Brandt A et al., J. Neurosci. (2005)
3 ) tom Dieck S et al., J. Cell Biol. (2005)
4 ) Schmitz F et al., Neuron (2000)
5 ) Furusawa T et al., Mol. Cell. Biol. (1999)
