RIM1/2 antibody SNARE binding domain - 140 213

RIMs are Rab3 effector proteins of the cytomatrix at the active zone
Rabbit polyclonal purified antibody
Cat. No.: 140 213
Amount: 50 µg
Price: $375.00
Cat. No. 140 213 50 µg specific antibody, lyophilized. Affinity purified with the immunogen. Albumin and azide were added for stabilization. For reconstitution add 50 µl H2O to get a 1mg/ml solution in PBS. Then aliquot and store at -20°C to -80°C until use.
Antibodies should be stored at +4°C when still lyophilized. Do not freeze!
Applications

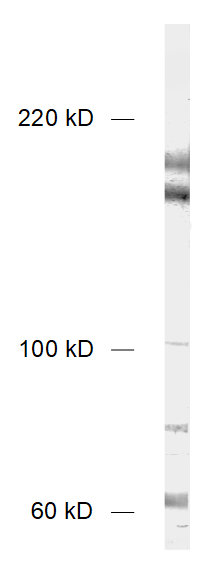

WB: 1 : 1000 gallery
IP: not tested yet
ICC: 1 : 500 gallery
IHC: not tested yet
IHC-P: not tested yet

Western blot (WB); separation of proteins by PAGE and subsequent transfer to a membrane. Detection of target molecules is carried out with antibodies. Some antibodies require special sample preparation steps. For details, please refer to the “Remarks” section.

Immunoprecipitation (IP); Immunoisolation or pulldown of a target molecule using an antibody. For details and product specific hints, please refer to the ”Remarks” section.

Immunocytochemistry (ICC) on 4% PFA fixed cells. Immunoreactivity is usually revealed by fluorescence. Some antibodies require special fixation methods. For details, please refer to the “Remarks” section.

Immunohistochemistry (IHC) on 4% PFA perfusion fixed tissue with 24h PFA post fixation. Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate. Some antibodies require special fixation methods or antigen retrieval steps. For details, please refer to the ”Remarks” section.

Immunohistochemistry (IHC-P) of formalin fixed, paraffin embedded (FFPE) tissue (some antibodies require special antigen retrieval steps, please refer to the ”Remarks” section). Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate.

Immunogen Recombinant protein corresponding to AA 1 to 466 from rat Rim2 (UniProt Id: Q9JIS1)
Reactivity Reacts with: rat (Q9JIS1, Q9JIR4), mouse (Q99NE5, Q9EQZ7).
Other species not tested yet.
Specificity RIM 2 including splice variants, cross reacts to RIM 1.
Data sheet 140_213.pdf

References for RIM1/2 - 140 213

Structural and functional reorganization of inhibitory synapses by activity-dependent cleavage of neuroligin-2.
Xu N, Cao R, Chen SY, Gou XZ, Wang B, Luo HM, Gao F, Tang AH
Proceedings of the National Academy of Sciences of the United States of America (2024) 12118: e2314541121. 140 213 ICC; tested species: mouse
LRRTM2 controls presynapse nano-organization and AMPA receptor sub-positioning through Neurexin-binding interface.
Liouta K, Lubas M, Venugopal V, Chabbert J, Jeannière C, Diaz C, Munier M, Tessier B, Claverol S, Favereaux A, Sainlos M, et al.
Nature communications (2024) 151: 8807. 140 213 ICC; tested species: mouse
Cat. No.: 140 213
Amount: 50 µg
Price: $375.00
Structural and functional reorganization of inhibitory synapses by activity-dependent cleavage of neuroligin-2.
Xu N, Cao R, Chen SY, Gou XZ, Wang B, Luo HM, Gao F, Tang AH
Proceedings of the National Academy of Sciences of the United States of America (2024) 12118: e2314541121. 140 213 ICC; tested species: mouse
LRRTM2 controls presynapse nano-organization and AMPA receptor sub-positioning through Neurexin-binding interface.
Liouta K, Lubas M, Venugopal V, Chabbert J, Jeannière C, Diaz C, Munier M, Tessier B, Claverol S, Favereaux A, Sainlos M, et al.
Nature communications (2024) 151: 8807. 140 213 ICC; tested species: mouse
Background

RIMs are presynaptic active zone proteins that regulate Ca2+ triggered release of neurotransmitters. RIM 1α and RIM 2α are composed of an N-terminal zinc-finger domain, a central PDZ domain and two C-terminal C2 domains that are seperated by long alternatively spliced sequences.
RIM 1α is a putative Rab 3a effector and has been shown to interact with other active zone proteins like Munc13-1, ERC 1b, ERC 2 and α-liprins. Deletion of RIM 1α in mice impaired neurotransmitter release without changing the structure of the synapse.
RIM 2β consists of a specific N-terminus, the central PDZ domain and the C-terminal C2 domains. The mRNA for RIM 2β is transcribed from an internal promoter of the RIM 2α gene.
Shorter variants of RIM 2 which comprise only the C-terminal C2B domain and some flanking regions are referred to as NIM 2 / RIM 2γ and NIM 3 / RIM 3γ.
